Blue Sea Systems

ANL Fuse Block With Cover - 35A to 750A

SKU: 5503
Διαθέσιμο
Προσθήκη στο Καλάθι

Περιγραφή

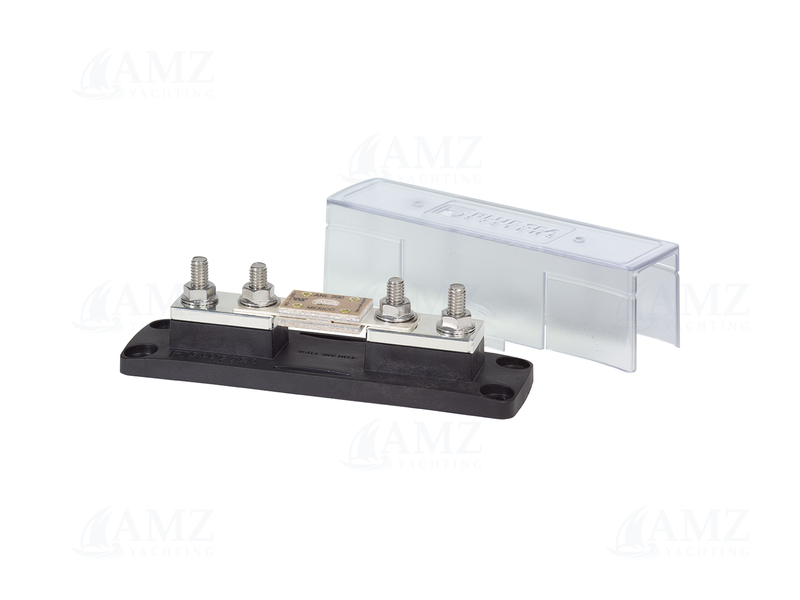

ANL Fuse block for fuses from 35A to 750A.


Features:

  • Cover included
  • Accepts 5/16" (M8) ring terminals
  • For use on systems up to 32 Volts DC
  • Swing out design allows replacement of the fuse without removing fasteners
  • Stainless steel studs provide resistance to corrosion and high torquing for excellent electrical contact
  • UL 94-V0 base resists high heat
  • Insert molded studs ensure secure fuse mounting
  • Insulating cover satisfies ABYC/USCG requirements
  • Cover breakouts allow wire access in any direction


Maximum cable size: 4/0 AWG

Χαρακτηριστικά

  • Τάση εισόδου : 32V DC
  • Σπείρωμα : M8 GND bolt
  • Υλικό κατασκευής : Tin-plated copper|Reinforced polycarbonate

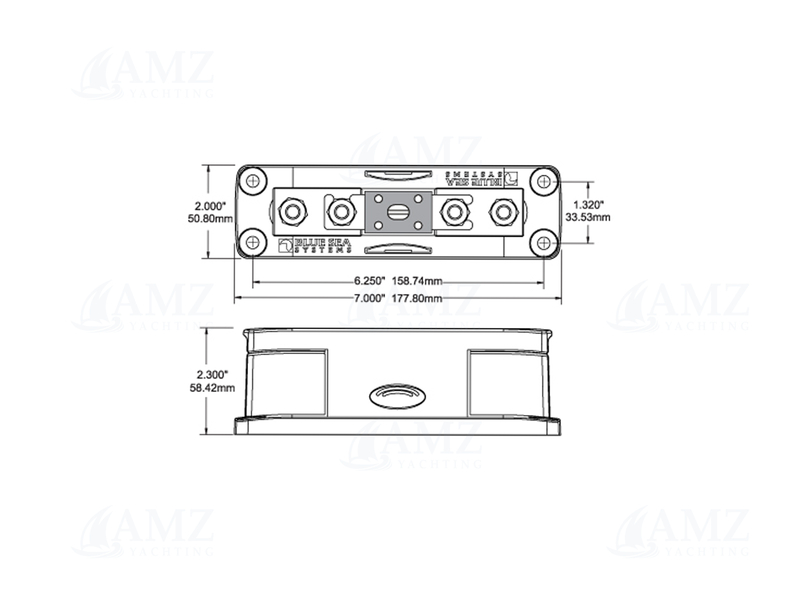

  • Διαστάσεις : 17.78x5.84x5.08mm
  • Βάρος : 0.48kg
75,45 €
