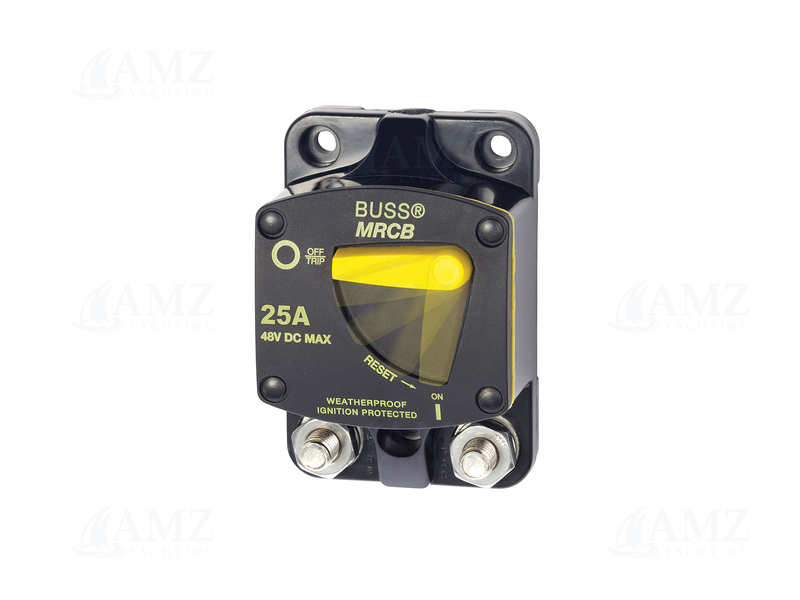

187-Series Circuit Breaker - Surface Mount

Thermal circuit breakers provide heavy duty circuit protection for 25 to 200 Amp loads when switching and circuit protection are both required.

Features:

• Combines switching and circuit protection into a single device*
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof

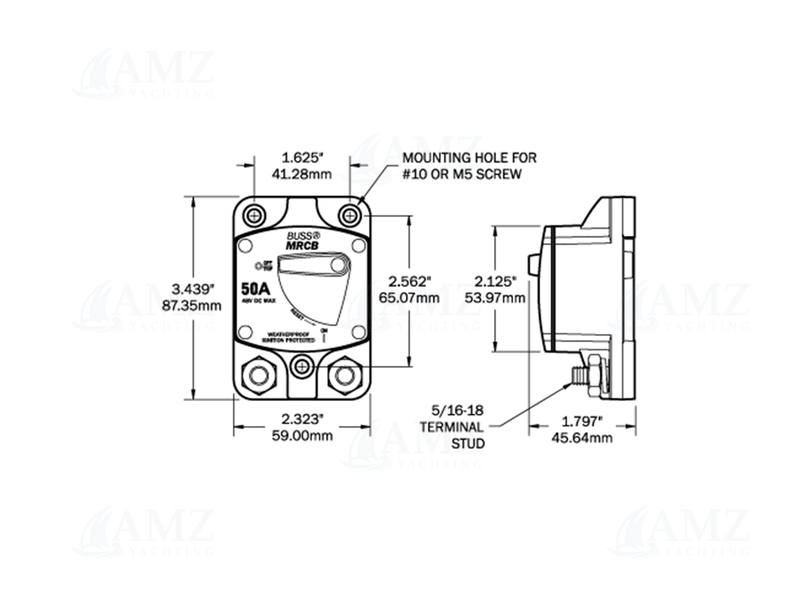

• Recessed mounting holes for clean appearance
• Large Clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 M8 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - Safe for installation aboard gasoline powered boats
• Meets SAE J1171 external ignition protection requirements

* Do not use as a switch where high inrush currents are expected.
